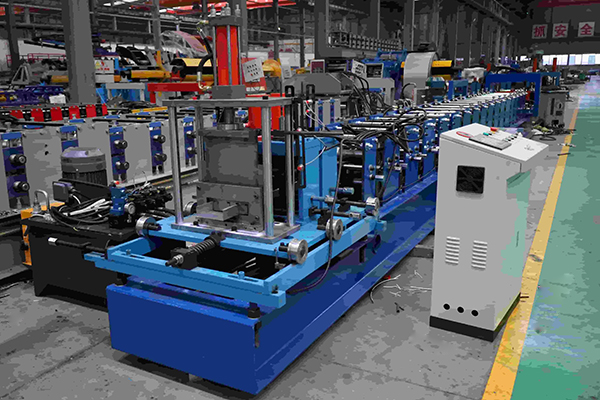

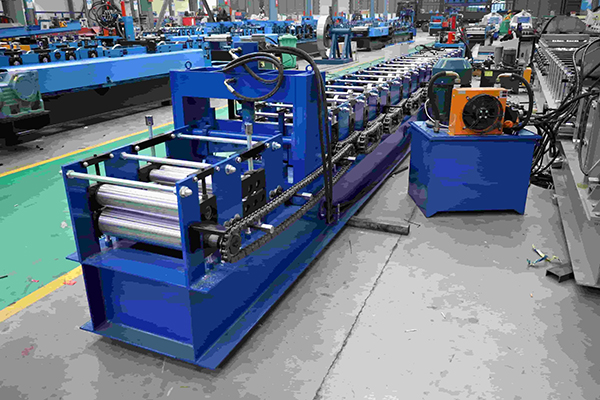

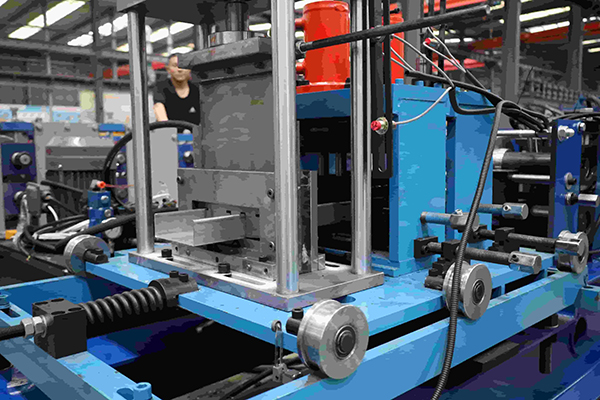

Automatic CZ Steel Roll Forming Machine

I. Product Introduction

Specialized in CZ-Purlin Equipment

Our factory focuses on the R&D, manufacturing, and sales of fully automatic CZ-purlin roll forming machines, including:

• CZ-purlin formers

• CZ-channel formers

We provide equipment covering the full spectrum of CZ-purlin processing requirements.

Versatile Application Scenarios

Widely used in:

• Steel structure purlins

• Factory building construction

• Shelving manufacturing

• Container accessories

• Municipal engineering projects

Our machines enable mass production of various CZ-purlin components.

Flexible Customization Services

We offer customized forming equipment with varying specifications and cross-sections based on client needs, accommodating diverse dimensions to meet personalized production requirements.

Fully Automatic & High-Efficiency Operation

The machine integrates:

• Automatic feeding

• Forming

• Cutting

• Counting

It requires minimal manual intervention, ensuring convenient operation and high efficiency.

Outstanding Processing Precision

Core components undergo precision machining and heat treatment (quenching).
Resulting CZ-purlins feature:

• Precise dimensions

• Smooth surfaces

• Stable load-bearing capacity

Fully compliant with engineering standards.

Stable & Durable Performance

• Machine body constructed from thickened, national-standard steel plates

• Welding ensures high rigidity

• Operates at high speed over extended periods without deformation or vibration

Extensive Market Reach

Renowned for reliable quality, our machines are best-sellers domestically and internationally, earning widespread recognition.

One-Stop Service Guarantee

Comprehensive services covering:

• R&D

• Manufacturing

• After-sales support

Ensures easy access to spare parts and hassle-free maintenance.

II. Core Features and Advantages

Robust & Durable Frame

• Constructed from thickened, national-standard steel plates

• Integral welding ensures exceptional rigidity

• Withstands long-term continuous operation without deformation

Superior Forming Precision

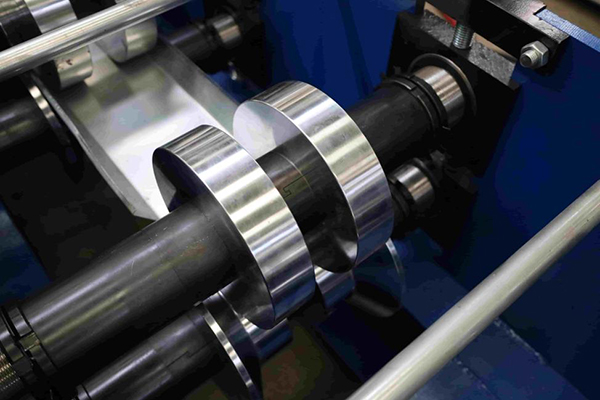

• Rollers made from high-quality steel

• Precision turned and heat-treated (quenched)

• CZ-purlins feature precise dimensions and well-defined angles

Intelligent & Fully Automatic

• Equipped with PLC numerical control system

• Automates:

• Feeding

• Length setting

• Cutting

• Counting

• One-touch start/stop for simple operation

High Efficiency & Labor Savings

• Smooth, deviation-free feeding and forming

• Increases daily output

• Reduces labor input and production costs

Flexible Adaptability

• Compatible with various metal coil thicknesses

• Quick switching between CZ-purlin profiles and other sheet profiles without complex adjustments

Low Consumption & Easy Maintenance

• Simple, logical transmission structure

• Standardized, easily sourced core components

• Routine maintenance is straightforward, with minimal failure rate

Energy-Efficient & Low-Noise

• High-efficiency, energy-saving motors

• Minimal power consumption

• Low operational noise, enhancing workshop comfort

Highly Customizable

• Forming designs tailored to customer-provided drawings and dimensions

• Ensures perfect fit for specific operational requirements

III. Strict Factory Quality Inspection Process

1. Raw Material Inspection

• Steel plates, rollers, shafts, motors, and electrical components are rigorously inspected

• Non-conforming materials are rejected

2. Machining Precision Verification

• Main shafts, forming rollers, and transmission shafts undergo precision grinding and calibration

• Ensures perfect concentricity and parallelism

3. Complete Machine Assembly & Debugging

• 2–4 hour no-load test run

• Verifies smooth operation of all transmission, rotation, and lifting mechanisms

4. Material Test Run

• Tested with actual color-coated steel coils

• Verifies profile dimensions, flatness, and cut-edge neatness

5. Electrical & Control System Inspection

• CNC system, counters, cutting mechanism, and emergency stop features fully checked

6. Final Factory Acceptance

• Inspected for clean appearance, accessories, and documentation

• Cleared for shipment only after full verification

IV. Product Packaging & Shipping Methods

Packaging Standards

• Consumables, electrical cabinets, tools, and manuals individually packed in wooden crates

• Rollers and precision components wrapped and protected against damage

• Machine protected against rain, moisture, and impact

• Standard packaging: protective film and reinforced for container shipping

• Large equipment may be disassembled for transport, facilitating hoisting/unloading

Loading & Securing

• Secured with steel cables and wooden blocks

• Prevents shifting or damage during land or sea transport

V. After-Sales Service Overview

• 1-year warranty on the complete machine

• Consumable parts supplied at low cost long-term

• Free installation and commissioning videos

• Operation tutorials provided

• Optional on-site guidance by qualified technicians

• Lifetime technical support for maintenance and repair
