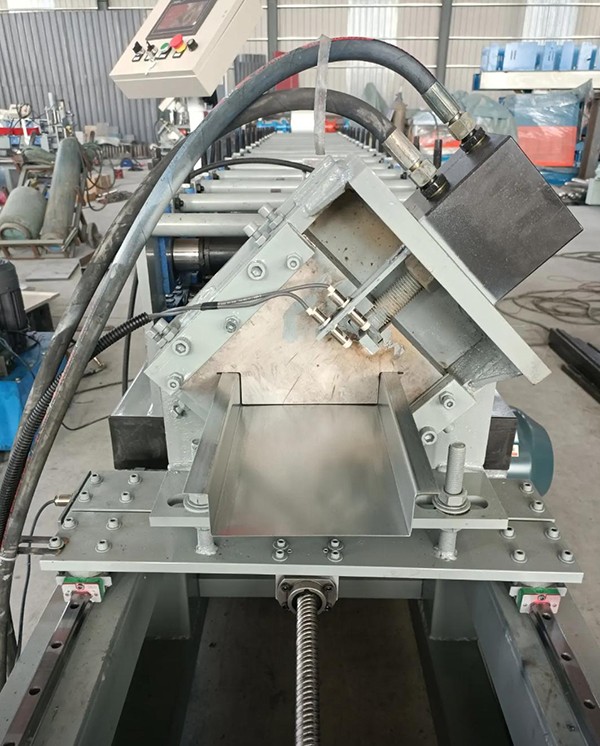

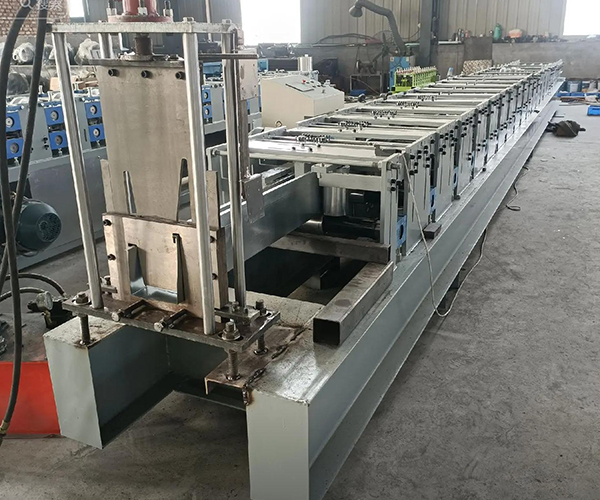

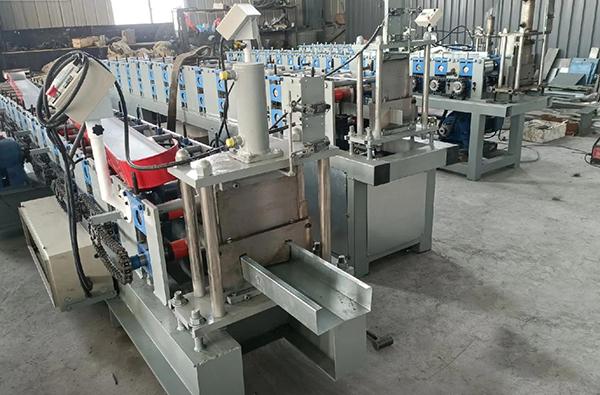

Special Shaped Channel Roll Forming Machine

I. Factory Product Introduction

Comprehensive Model Range

Our factory specializes in the R&D, manufacturing, and sales of channel roll forming machines. Our core product line includes a variety of cold-bending processing equipment, such as:

• Specialized profile formers

• Fully automated systems

• Gutter forming machines

These machines are designed to meet channel production requirements across diverse application scenarios.

Versatile Application Across Multiple Fields

Our equipment is widely used in:

• Steel structure construction

• Architectural curtain wall installation

• Bridge support fabrication

• Warehouse racking manufacturing

• Agricultural machinery component production

• Municipal engineering projects

It enables large-scale, mass production of channel sections, gutters, and related products.

Personalized Customization Services

We provide bespoke channel forming equipment tailored to specific client requirements, accommodating various specifications and cross-sectional profiles. This ensures that your unique production needs are fully satisfied.

Highly Automated Operation

Features include:

• Automatic feeding

• Precision forming

• Automatic cutting

Minimal manual intervention boosts efficiency and reduces labor costs.

High-Quality Production Assurance

Core forming components undergo precision machining and quenching, resulting in:

• Precise dimensions

• Smooth surfaces

• Sharp, regular angles

• Superior load-bearing capacity and structural stability

Stable and Reliable Performance

• Machine frame built from thickened, national-standard steel plates

• Exceptional rigidity and resistance to deformation and vibration

• Suitable for continuous, high-speed operation, minimizing downtime

Extensive Sales and Distribution Network

• Strong domestic and international sales

• High customer satisfaction and recognition

One-Stop R&D, Manufacturing, and Sales Service

• Professional R&D and production team

• Continuous product optimization

• Comprehensive services: R&D, manufacturing, sales, promotion, and after-sales maintenance

II. Core Product Features and Advantages

Robust and Durable Machine Structure

• Constructed from thickened, national-standard steel plates

• Precision welding ensures stability and rigidity

• Resistant to vibration and deformation during high-speed operation

Precise and Controllable Forming Accuracy

• Rollers made from high-quality bearing steel

• Precision turned and quenched for smooth, wear-resistant surfaces

• Produced channel components have:

• Accurate dimensions

• Flat surfaces

• Sharp, distinct edges

Intelligent Electronic Control

• PLC-based CNC system

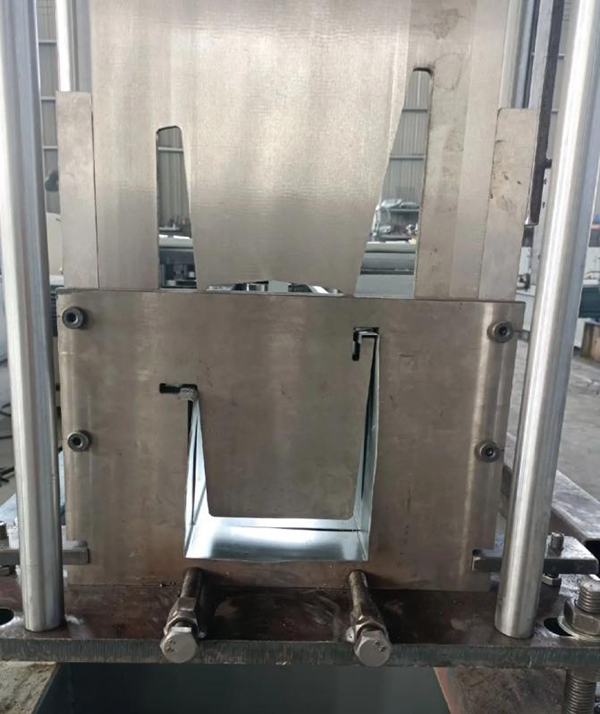

• Functions include fixed-length cutting, piece counting, automatic shearing

• One-button start/stop and intuitive workflow

High-Efficiency and Energy-Saving Production

• Constant-speed feeding and forming

• Smooth material discharge

• Increased output, reduced labor costs

High Adaptability and Flexibility

• Compatible with:

• Color-coated steel

• Galvanized steel

• Aluminum

• Cold-rolled steel

• Easy model switching without tedious adjustments

Low-Consumption, Easy-Maintenance Design

• Rational transmission layout

• Standardized, easy-to-procure components

• Simple maintenance, extending equipment service life

Energy-Efficient, Quiet, and Eco-Friendly

• High-output, energy-saving motor

• Low noise operation

• Comfortable working environment

Customized Production Solutions

• Custom-built equipment based on:

• Design drawings

• Dimensional parameters

• Specific processing requirements

III. Rigorous Factory Quality Inspection Process

1. Raw Material Inspection

• All materials (steel plates, rollers, shafts, motors, electrical components) strictly inspected

• Substandard materials rejected

2. Machining Precision Inspection

• Precision grinding and calibration of:

• Spindles

• Forming rollers

• Transmission shafts

• Ensures concentricity and parallelism

3. Complete Machine Assembly & Debugging

• 2–4 hour no-load test run

• Verify smooth transmission, rotation, and lifting mechanisms

4. Material Test Run

• Using actual color-coated steel coils

• Checks:

• Tile profile accuracy

• Flatness

• Cut-edge neatness

5. Electrical & Control System Inspection

• Ensure all functions operate correctly:

• CNC system

• Counters

• Cutting mechanism

• Emergency stop protection

6. Final Factory Acceptance

• Inspection of:

• Clean appearance

• Accessories completeness

• Documentation integrity

• Shipment only authorized after full verification

IV. Product Packaging and Shipping Methods

Packaging Standards

• Consumables, electrical cabinets, tools, and manuals in separate wooden crates

• Rollers and precision components individually wrapped

• Machines protected against rain, moisture, and physical impact

• Standard packaging: protective film, container-secured

• Large machines: modular disassembly for loading/unloading

Loading and Securing

• Secured with steel cables and wooden blocks

• Prevents shifting or damage during transport

V. After-Sales Service Overview (Optional)

• 1-year warranty for the complete machine

• Low-cost consumable parts supplied long-term

• Free installation and commissioning videos

• Optional on-site installation guidance by qualified technicians

• Lifetime technical support for maintenance and repair
