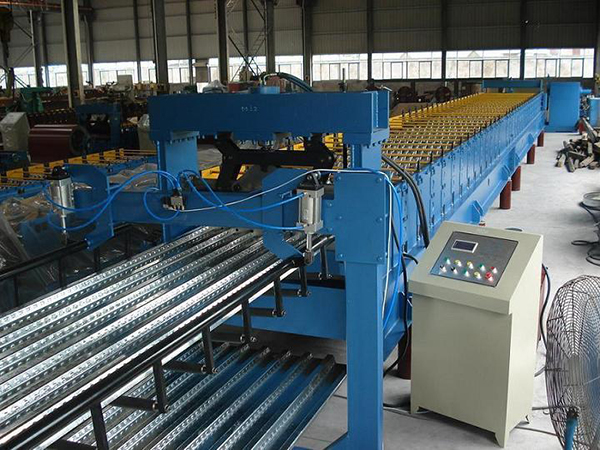

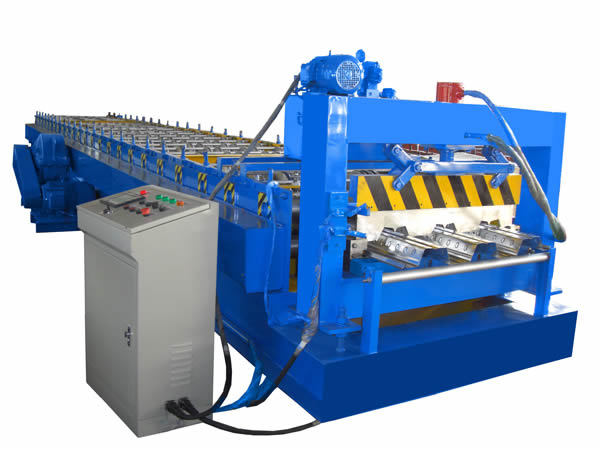

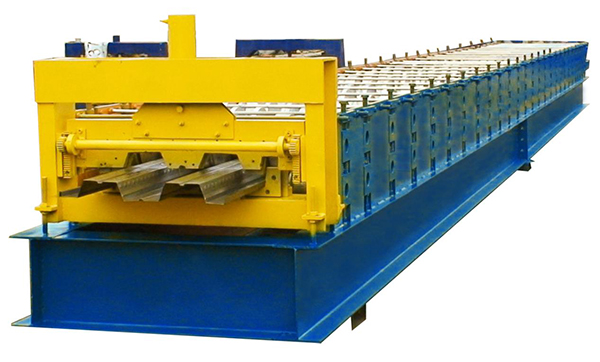

I. Introduction to Floor Roller Forming Machine

Our factory specializes in the research, development, production, and sales of floor roll forming machines.

The machine consists of:

• Uncoiler and base

• Roll guiding device

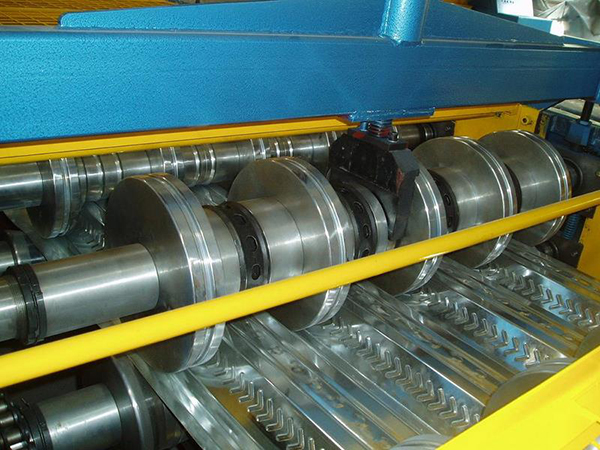

• Roll forming system

• Post-cutting device

• Hydraulic station

• Control system

• Support platform

Applications:

• Produces corrugated profiles with high strength and large ribs

• Excellent adhesion to concrete, ideal for floor slabs in high-rise buildings

• Cost-effective solution with customizable specifications

• High degree of automation and stable operation

• Sold both domestically and internationally

II. Core Features and Advantages

1. Robust Structure – High-strength molding frame ensures stable forming and uniform product quality.

2. High-Precision Forming Wheels – Made of bearing steel, precision machined and quenched; wear-resistant surface; flat, attractive tile shapes with standard curvature and tight joints.

3. Fully Automated Electronic Control – Achieves automated management and significantly improves production efficiency.

4. High-Speed and Efficient Operation – Uniform feeding and forming, smooth discharge, large daily output, reduced labor costs; improved cutting minimizes length errors.

5. Versatility – Supports various thicknesses of color steel, galvanized, and aluminum coils; quick and easy coil changes.

6. Low Failure Rate & Easy Maintenance – Reasonable transmission structure, universal parts, simple maintenance, long service life.

7. Energy-Saving & Quiet Motor – Adequate power, low consumption, low noise for a comfortable workshop environment.

III. Strict Quality Inspection Process

1. Raw Materials Inspection – Frame steel plates, rolls, spindles, motors, and electrical components inspected; unqualified materials rejected.

2. Machining Precision Testing – Spindle, forming wheel, and drive shaft finely ground and calibrated for concentricity and parallelism.

3. No-Load Test Run – Assembled machine runs 2–4 hours to ensure smooth transmission, rotation, and lifting.

4. Actual Test Run – Real color steel plates used for continuous pressure testing to check tile dimensions, flatness, and cut neatness.

5. Electrical System Inspection – CNC, counter, cut-off system, and emergency stop confirmed fully operational.

6. Final Acceptance – Machine inspected for clean appearance, complete accessories, and correct documentation before shipment.

IV. Packaging and Shipping Methods

• Consumable parts, electrical control box, tools, and manuals: Individually packaged in wooden crates.

• Rollers and precision parts: Individually wrapped to prevent damage during transit.

• Machine protection: Against rain, moisture, and impact; bare-metal wrapping + reinforcement for container loading.

• Large items: Can be loaded in sections for easier unloading.

• Securing: Fixed with steel wire ropes and timber to prevent displacement during transport.

V. After-Sales Service

• Warranty: One-year coverage

• Spare Parts Supply: Long-term, low-cost supply of easily damaged parts

• Installation & Training: Free installation/debugging videos and operation tutorials; on-site technician guidance available

• Technical Support: Lifetime support and equipment maintenance guidance
