I. Introduction to Rack Roll Forming Machine

The Storage Rack Roll Forming Machine is a premium, heavy-duty industrial production line designed for modern warehousing and logistics applications. Engineered with exceptional flexibility and technical versatility, this machine accommodates the production of all core racking components, including:

• Rack Upright Forming Machine setups

• Rack Beam Forming Machine configurations

• Rack Pallet Forming Machine systems

Our advanced Steel Rack Roll Forming Machine Line integrates:

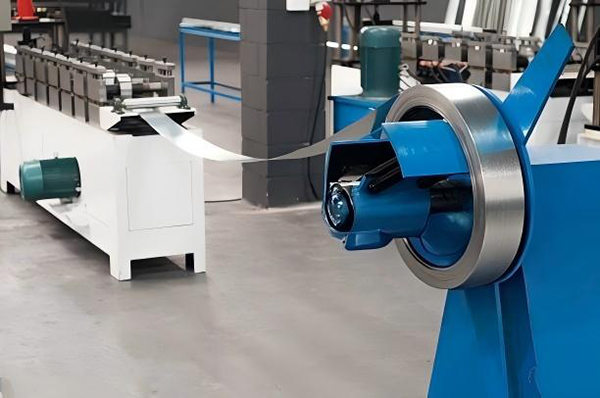

• Automatic uncoiling

• High-speed continuous punching

• Precision roll forming

• Flying/hydraulic shearing

• Automated stacking

Widely used in heavy-duty warehousing, automated storage and retrieval systems (AS/RS), and industrial racking manufacturing, this production line delivers high throughput and competitive return on investment.

II. Key Features & Advantages

1. Heavy-Duty Rigid Structure & Durability

• Machine base and housing stands welded with premium high-strength steel plates

• Stress-relief annealing treatment eliminates internal stress

• Zero deformation under heavy continuous operation

• Suppresses punching/forming vibration, extending roller and die lifespan

2. High Efficiency & Automated Production

• Servo feeding technology synchronizes multi-hole punching with continuous roll forming

• Non-stop flying shear/punching systems maximize daily output

• One-key quick specification switching allows easy management by 1–2 operators

3. High Versatility & Multi-Purpose Processing

• Automatic duplex width-adjustment system (servo or motor-driven)

• Compatible with various heights, widths, and thicknesses of rack uprights or beams

4. Low Failure Rate & Low Maintenance Design

• Core electrical and hydraulic components from premium global brands

• Modular layout with centralized lubrication system for quick, simple routine maintenance

• Minimizes unplanned downtime

5. 100% Tailored Engineering & Customization

• Customizable hole patterns (teardrop, butterfly, diamond)

• Flexible material thickness adaptation

• Automated width-extension and stacking solutions to match exact production requirements

III. Strict Quality Control & Acceptance Process

1. Incoming Materials & Core Components Inspection

• 100% dimensional and non-destructive testing on structural steel and tool steels (Cr12MoV/DC53)

• All electrical and hydraulic components undergo strict Incoming Quality Control (IQC)

2. Mechanical Assembly & Punching Precision Check

• High-precision measurement of forming shaft radial runout, roller alignment, and cumulative pitch errors

• Ensures absolute hole-spacing accuracy and profile straightness

3. Circuit & Electrical Safety Testing

• Insulation resistance, dielectric voltage withstand, and ground continuity tests

• Full verification of emergency stops, limit switches, and safety interlocks

4. Full-Line No-Load Simulation Test

• Continuous no-load run for at least 48 hours

• Monitoring of bearing temperatures, hydraulic pressure stability, and PLC logic accuracy

5. Load Trial & Factory Acceptance Test (FAT)

• Real production trials with client-specified steel coils

• Measurement of profile cross-section, twist, camber, hole-pitch tolerances, and surface finish

• HD video documentation and comprehensive Quality Inspection Report for client approval

IV. Packaging & Shipping Methods

Packaging Standards:

• Independent Wooden Crates: Wear parts, electrical cabinets, toolkits, and manuals securely packed

• Precision Component Protection: Rollers and critical components individually wrapped

• Weather & Impact Resistance: Rust-proof, waterproof, moisture-proof, and anti-collision measures

• Heavy-Duty Film Wrapping: Standard machine structures wrapped for containerized transport

• Modular Dismantling: Oversized components disassembled for crane-assisted unloading

Loading & Securing:

• Equipment firmly anchored with steel wire ropes, turnbuckles, and heavy wooden chocks to prevent shifting during transport

V. After-Sales Service

1. 1-Year Warranty: Complete coverage for all non-wear components

2. Long-Term Spare Parts Supply: Lifetime supply of wear parts, slitting blades, spacers, and electrical components at competitive prices

3. Installation Videos & Tutorials: HD videos, operation manuals, and step-by-step maintenance guides

4. On-Site Engineer Deployment: Bilingual technicians available worldwide for installation, commissioning, and staff training

5. Lifetime Technical Support: 24/7 expert consultations, troubleshooting, and maintenance guidance
