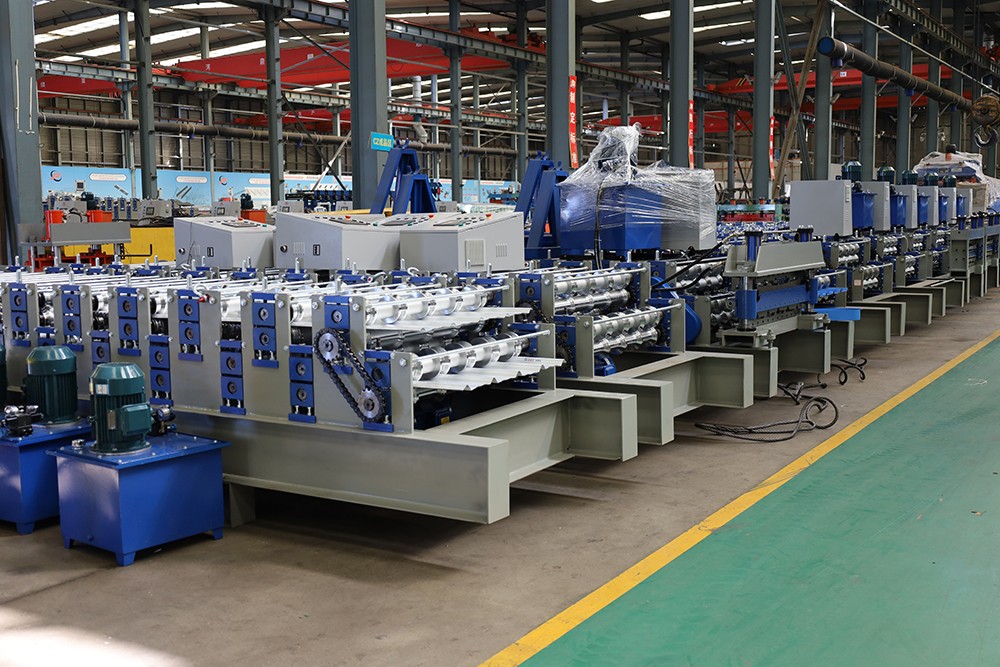

Automatic single layer roll forming machine

I. Product Introduction: Factory Roof Tile Forming Machines

Our factory specializes in the research, development, production, and sales of roof tile forming machines. We offer a comprehensive range of cold-forming equipment, including single-layer color-coated steel tile machines, double- and triple-layer composite tile presses, antique-style glazed tile machines, bamboo-pattern tile machines, and curved roof tile machines.

Our machines are widely used to produce color-coated steel roofing tiles for steel structure factories, warehouses, villas, livestock farms, prefabricated houses, and new rural construction projects. We support customization for various tile profiles and specifications.

Featuring high automation, stable operation, and robust performance, our machines are exported to domestic and international markets. Custom machine models and dimensions can be designed to meet specific production requirements.

II. Key Features and Advantages

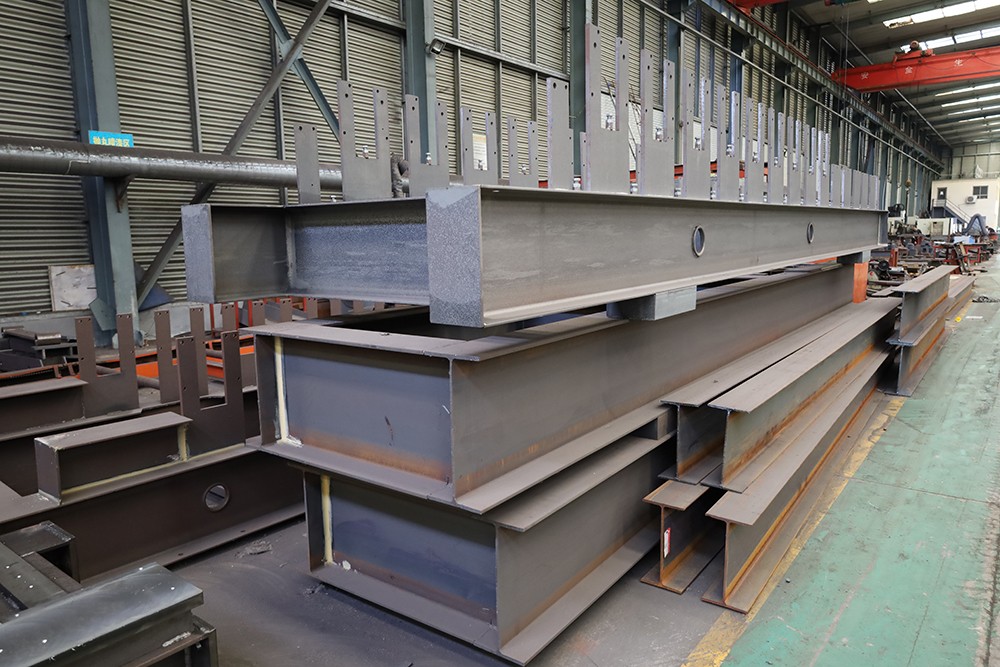

1. Sturdy Construction: Welded frame made from thickened, national-standard steel plates ensures high rigidity and long-lasting stability without warping or vibration, even under prolonged high-speed operation.

2. High Forming Precision: Precision-machined forming rollers from high-quality bearing steel undergo quenching for a wear-resistant surface. Produced tiles are flat, aesthetically pleasing, with standard curvature and tight seams.

3. Fully Automatic Electrical Control System: PLC-based CNC cabinet enables automatic length setting, counting, and cutting. One-button start/stop simplifies operation for beginners.

4. Fast Operation & High Efficiency: Uniform feeding and forming guarantee smooth output, high daily productivity, and reduced labor costs.

5. High Versatility: Compatible with various thicknesses of color-coated steel, galvanized steel, and aluminum coils; rapid model changeovers.

6. Low Failure Rate & Easy Maintenance: Well-designed transmission structure with standard, readily available parts; routine maintenance is simple and effective.

7. Energy-Efficient & Quiet: High-power motor ensures sufficient driving force with low electricity consumption and minimal noise for a comfortable workshop environment.

8. Customization Support: Dedicated forming equipment can be tailored to customers’ tile profiles and panel dimensions.

III. Strict Quality Inspection Process

1. Raw Material Inspection: All steel plates, rollers, spindles, motors, and electrical components are inspected on arrival; non-conforming materials are rejected.

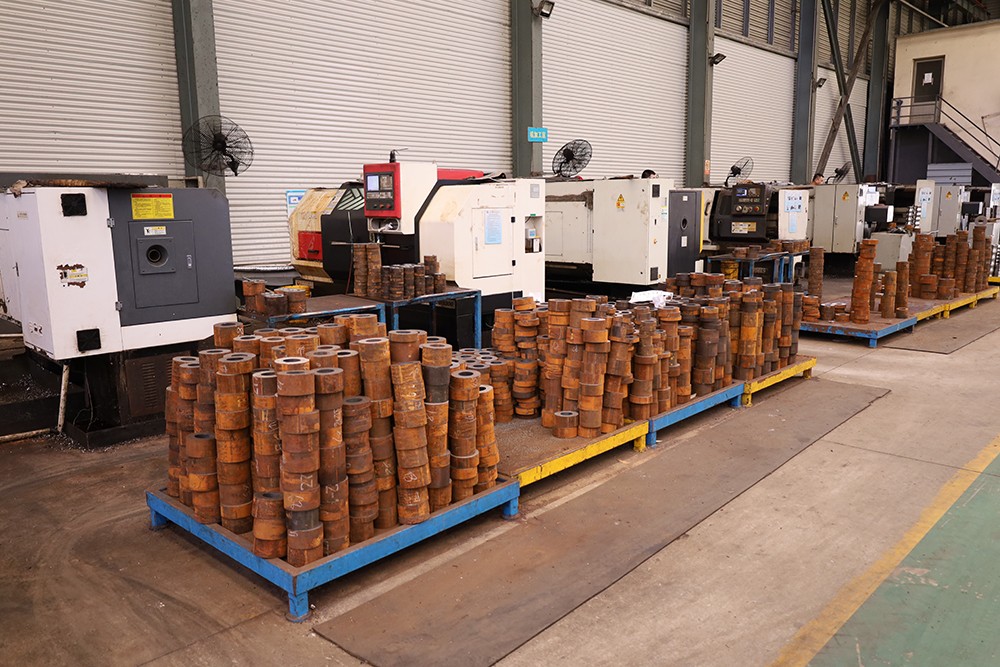

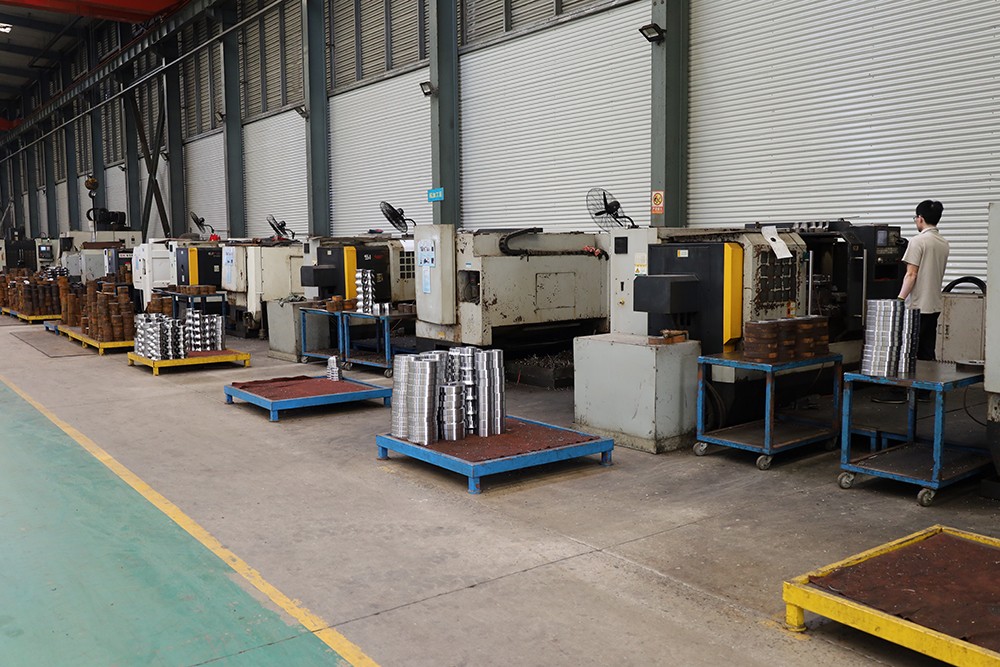

2. Machining Precision Check: Spindles, forming rollers, and drive shafts are precision-ground and calibrated for concentricity and parallelism.

3. Complete Machine Assembly & No-Load Testing: 2–4-hour test run verifies smooth operation of transmission, rotation, and lifting mechanisms.

4. Production Run with Material: Continuous production testing using actual color-coated steel sheets ensures accurate dimensions, flatness, and neat cut edges.

5. Electrical & Control System Inspection: CNC system, counters, cutting mechanism, and emergency stops are fully tested.

6. Final Factory Acceptance: Equipment cleanliness, accessories, and documentation are verified before shipment authorization.

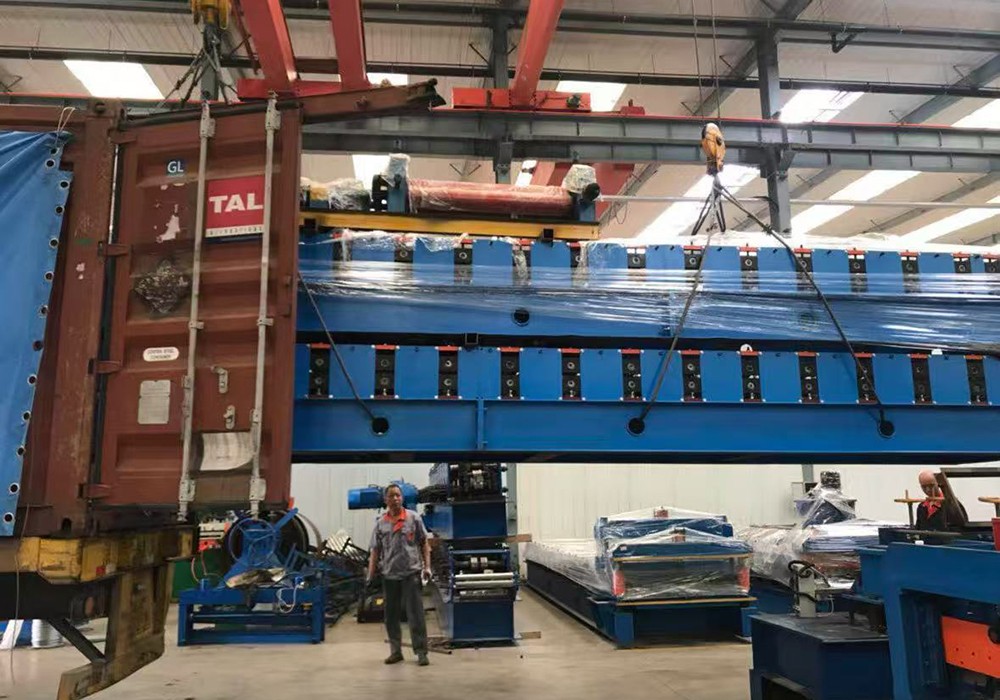

IV. Packaging & Shipping

• Fragile Components, Electrical Cabinets, Tools, Manuals: Packed in individual wooden crates.

• Rollers & Precision Parts: Individually wrapped to prevent paint chipping, deformation, or impact damage.

• Entire Machine: Protected against rain, moisture, and impact; standard packaging includes reinforced stretch-film wrapping, suitable for container loading.

• Large Components: Disassembled and loaded in sections for crane-assisted unloading.

• Secure Transit: Machines fastened with steel wire ropes and wooden blocks to prevent shifting or damage during transport.

V. After-Sales Service

• One-year warranty on the entire machine.

• Wear-and-tear parts supplied at low cost for long-term support.

• Free installation, commissioning videos, and operating manuals.

• On-site installation guidance available upon request.

• Lifetime technical support and maintenance guidance provided.
