PV Bracket Roll Forming Machine

I. Product Introduction: Photovoltaic Mounting Bracket Forming Machine

The Photovoltaic Mounting Bracket Forming Machine is a specialized cold-forming machine designed for producing solar photovoltaic mounting brackets. Using galvanized steel strips and cold-rolled steel strips as raw materials, the machine integrates uncoiling, leveling, continuous cold bending, punching, and hydraulic cutting into a single seamless process.

It produces a wide variety of profiles, including photovoltaic rails, C-shaped steel profiles, U-shaped brackets, and roof-mounted photovoltaic clamps, which are widely used in solar power plants, rooftop solar installations, commercial and industrial solar systems, and mountain-based solar mounting projects.

With high automation, precise profile dimensions, and strong versatility, this equipment serves as core machinery for photovoltaic component manufacturers and large-scale solar installation suppliers.

II. Key Features & Advantages

1. Robust Frame Structure & Stable Operation

• Welded frame made of thickened steel plates ensures structural rigidity.

• Maintains vibration-free, distortion-free operation even during continuous long-term production.

2. Wear-Resistant Rollers & High Forming Precision

• Rollers made from high-quality alloy steel undergo quenching, precision turning, and polishing.

• Produced profiles have smooth surfaces, excellent perpendicularity, and minimal dimensional deviation, fully meeting photovoltaic installation standards.

3. Fully Automatic CNC Control System

• PLC-based control with touchscreen interface enables automatic punching, length setting, cutting, and counting.

• User-friendly operation reduces reliance on manual labor and simplifies training for new operators.

4. Multi-Functional & Highly Versatile

• Produces various photovoltaic C-channels, U-channels, mounting rails, and brackets.

• Quick roller changes allow rapid switching between different profiles, meeting diverse project requirements.

5. Smooth Material Feeding & High Production Speed

• Precision transmission ensures stable, drift-free feeding.

• High forming speed supports large-scale mass production, increasing daily output.

6. Compatibility with Various Raw Materials

• Processes black steel, galvanized steel, and high-zinc-coating galvanized strips.

• Adjustable sheet thickness produces corrosion-resistant and durable components suitable for harsh outdoor environments.

7. Low Failure Rate & Simple Maintenance

• Rational machine structure; motors, electrical, and hydraulic components sourced from reputable brands.

• Standardized parts allow for simple maintenance and low repair costs.

8. Customization Support

• Equipment can be tailored to customer drawings, including special profiles, hole spacing, and height adjustments to meet international installation standards.

III. Strict Quality Inspection Process

1. Raw Material Inspection

• All steel plates, rollers, spindles, motors, and electrical components are inspected on arrival; non-compliant materials are rejected.

2. Machining Precision Verification

• Spindles, forming wheels, and drive shafts undergo precision grinding and calibration to ensure concentricity and parallelism.

3. Complete Machine Assembly & No-Load Testing

• 2–4 hour no-load test ensures smooth transmission, rotation, and lifting operation.

4. Production Run with Material

• Continuous production testing with actual steel sheets verifies profile dimensions, flatness, and cut edge quality.

5. Electrical & Control System Inspection

• Checks CNC system, counter, cutting mechanism, and emergency stop functionality.

6. Final Factory Acceptance

• Ensures cleanliness, complete accessories, and correct documentation before shipment authorization.

IV. Product Packaging & Shipping Methods

• Fragile Components: Electrical cabinets, tools, and manuals packed in separate wooden crates.

• Precision Parts: Rollers and other high-precision components individually wrapped for protection.

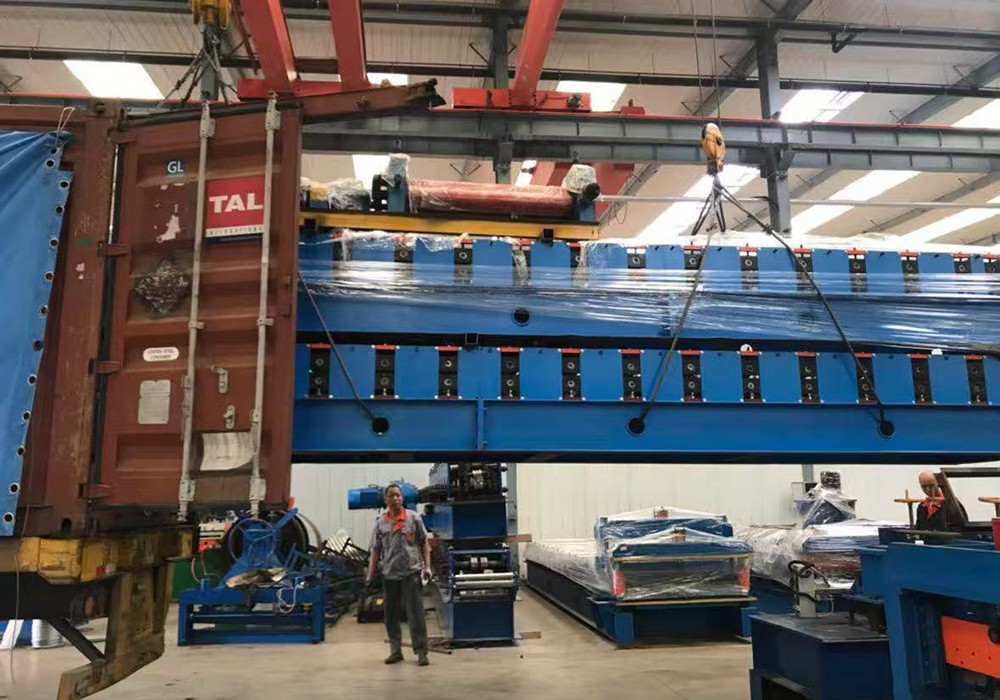

• Whole Machine Protection: Against rain, moisture, and impact; standard machine wrapped in stretch film + reinforced for container transport.

• Large Components: Loaded in sections for crane-assisted unloading.

• Loading & Securing: Machine fastened with steel wire ropes and wooden blocks to prevent shifting during transport.

V. After-Sales Service

• Warranty: One-year warranty on the entire machine.

• Spare Parts Supply: Wear parts available at long-term low cost.

• Installation Support: Free installation and commissioning videos, plus operation manuals.

• On-Site Assistance: Technicians available for installation guidance worldwide.

• Lifetime Technical Support: Guidance for maintenance and repairs throughout the equipment’s service life.
